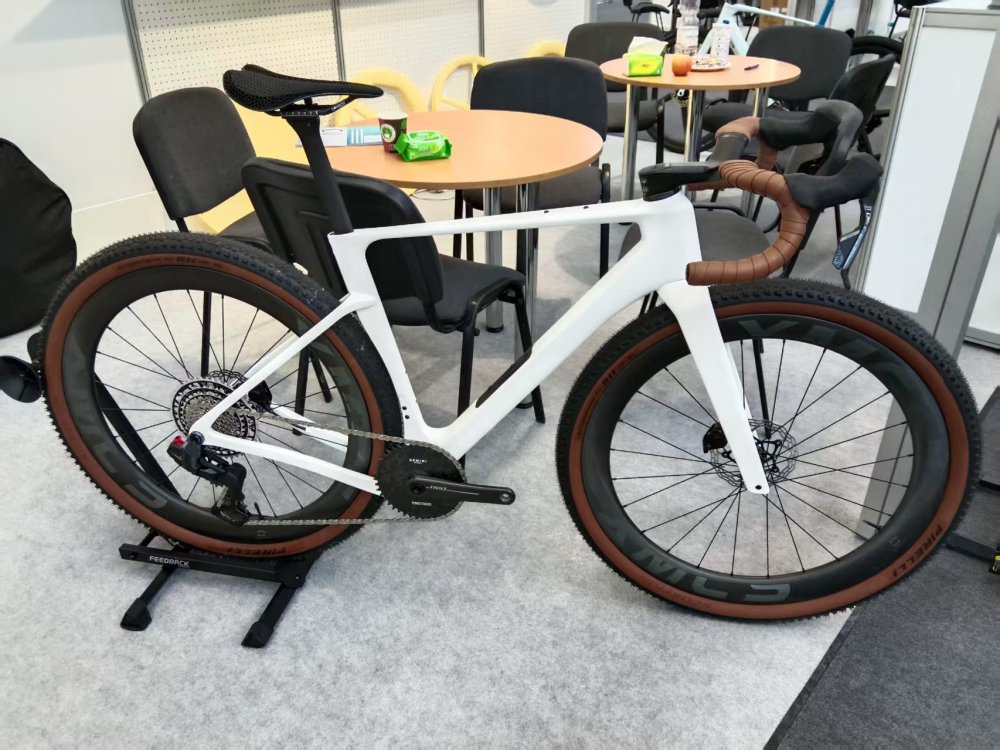

XMCS GRT (Gravel Racing Technology) Aero Gravel Frameset (30-50 days lead time now, depends on finish and paint, we will arrange UCI approved things before Aug 2026)

SKU:
One piece monocoque molded
Material:  Mixed of T1000, 40T, 30T Toray carbon fiber, and  SCM made by Mitsubishi
Bottom Bracket: T47-85.5
Max tire clearance: 700*57C (GRT)
System weight limit: 130kg (GRT)
Warranty: 5 years
The headset, thru axles are included

 Current frame takes 1x 46T only, we are tring to update it fitting with 1x50T, if you don't take 46T, please wait for updated version
0.0 (0 Reviews)
1 Sold
$1,989.00 $1,490.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
  • Frame finish:
    UD raw carbon matt
    UD raw carbon glossy
    one color painting
    Two colors painting [ + $35.00 ]
    Three colors painting [ + $70.00 ]
  • Size:
    S
    M
    L
    XL
  • Seat post:
    Zero Offset
    15mm setback
  • Handlebars:
    No handlebar
    With GR AERO Handlebar [ + $250.00 ]
    With GR RISER Handlebar [ + $250.00 ]
  • Parts:
    No extra parts
    Spare rear derailleur hanger * 1piece [ + $10.00 ]
    Spare rear derailleur hanger * 2piece [ + $20.00 ]
    Titanium computer mount* 1 piece [ + $30.00 ]
  • Total extras:$0.00
Quantity:
-
+
  • XMCS GRT (Gravel Racing Technology) Aero Gravel Frameset (30-50 days lead time now, depends on finish and paint, we will arrange UCI approved things before Aug 2026)
  • XMCS GRT (Gravel Racing Technology) Aero Gravel Frameset (30-50 days lead time now, depends on finish and paint, we will arrange UCI approved things before Aug 2026)
1/1
  • XMCS GRT (Gravel Racing Technology) Aero Gravel Frameset (30-50 days lead time now, depends on finish and paint, we will arrange UCI approved things before Aug 2026)
  • Description
Frame weight (unpainted, including hangers and bolts):
S: 1010+/- 30g
M: 1035+/-30g
L: 1070+/-30g
XL:1105+/-30g

Fork weight: 455+/-10g,unpainted

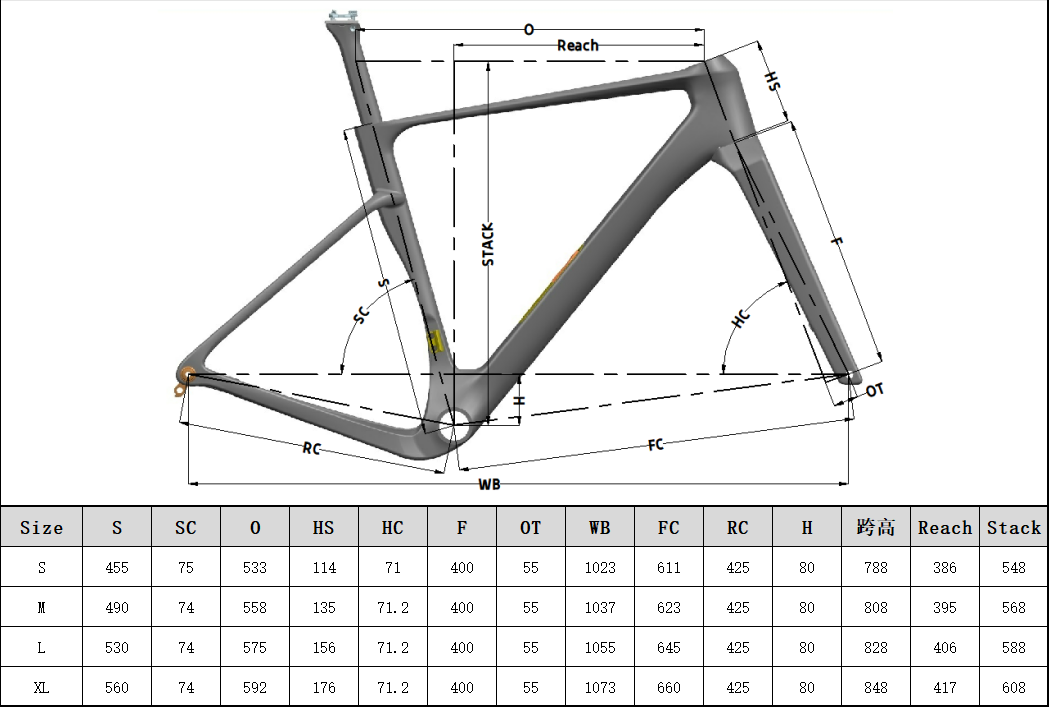

Frameset Geometry

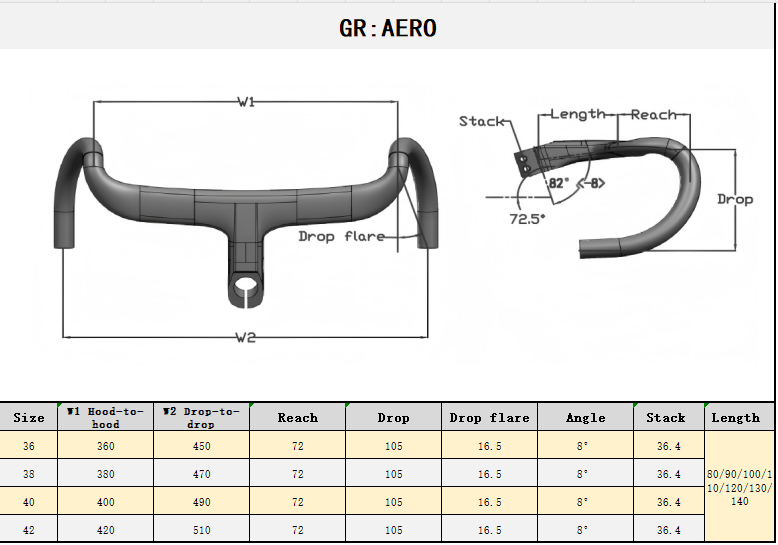

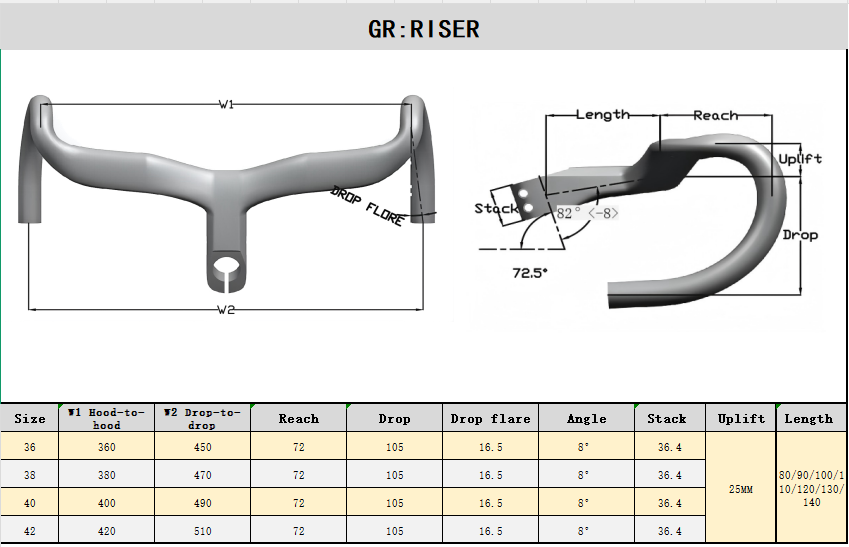

Handlebar Geometry:  AERO and RISER Types (option)

For the Riser handlebars, the size of 42 is unavailable now
